CCTVRUS-DVR8D1

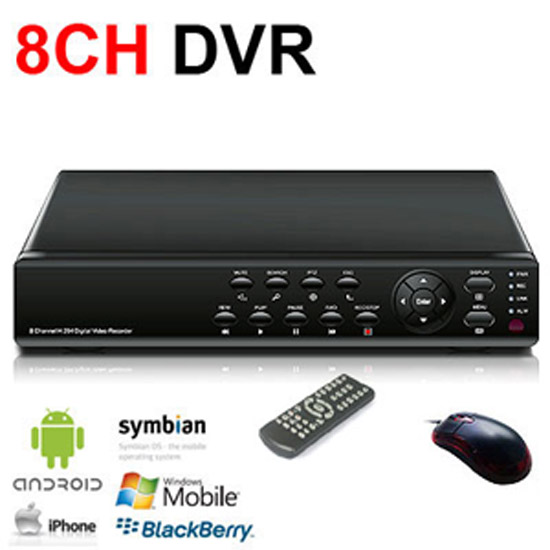

8 Channel H.264 Surveillance Network Security Real Time CCTV Digital Video Recorder.

8-CHANNEL DVR

$ 700.00

 (inc GST)

System :
8 Channel H.264 Surveillance Network Security Real Time CCTV Digital Video Recorder, PAL: 200fps/ NTSC: 240fps Recording Frame Rate, 1 BNC and 1 VGA Video Output, 8 Audio Input, 1 Audio Output, CIF/Half-D1/D1 Recording Resolution, Support Max 2TB HDD. Comes with 500 GB hard disk.
DVR Featuers :
Operating system Embedded LINUX OS
Video compression H.264
Video/Audio input 8 channels BNC
Video/ Audio output 1 channel BNC
Display spilt 1/4/8-channel
VGA output Support 600*800 1024*768 1280*1024@60Hz
Multiplex operation Live, recording, network, mobile phone surveillance simultaneously
Recording mode Timer/manual/motion detection/alarm
Recording frame rate PAL：200fps   NTSC：240fps
Recording quality High, Normal, Low
Recording resolution  PAL: D1(704 x 576), NTSC: D1(704 x 480)
PAL: CIF(352 x 288), NTSC: CIF(352 x 420)
Recording playback 8 channel playback simultaneously
Recording backup Support USB flash disk, mobile hard disk, network backup
HDD Support 1 SATA HDD, capacity to 2T
Network transmission 8 channels real-time network transmission with CIF resolution
Capture function Support
Email alarm Send pictures to the designated Email box
PTZ control Support
PTZ protocol PELCO-D,PELCO-P
PIP Support
Zoom Support
Network and protocol 1 RJ-45 10/100M via Ethernet. Support TCP/IP,SMTP,DHCP,DNS,DDNS,NTP etc.
IE browser Support, max five users online
Client software Support, max five users online
CMS Support
Dual stream Supportmain and secondary interchange）
Multi-language Support
Mobile phone surveillance Support Windows,Symbian,IPhone,Blackberry,Android
Mouse interface USB1.1
Backup interface USB2.0
Remote controller Support
User authority Support multi-level user authority distribution
Power DC12V/3A
Working temperature -20℃-60℃
Working humidity 10%－90%
